1080P IP MINI WIFI Camera Module Support Android /Windows APP
Category Features Camera Module
Tags IP Camera, MINI Camera, WIFI Camera Module
2MP 1080P WIFI IP Camera Module, can do Multi-Camera Synchronization System( at least 4 cameras). We also can do USB UVC Multi-Camera Synchronization System( at least 4 cameras)
| Sensor | 1/2.7 inch cmos sensor |
|---|---|
| Resolution | 1920X1080 |

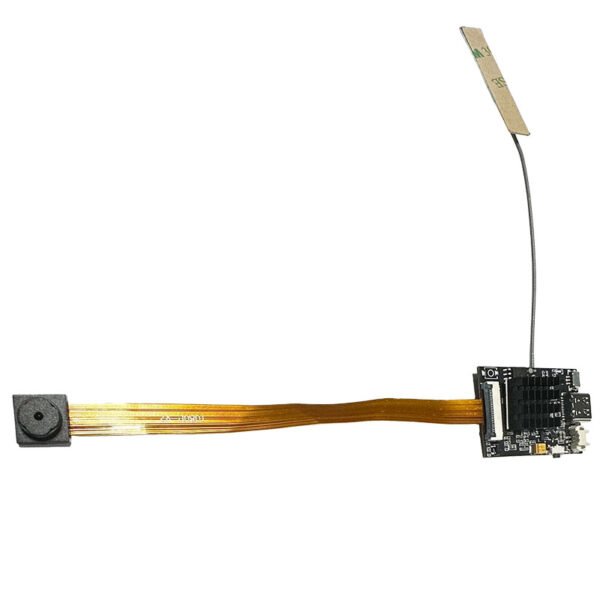

The MINI 1080P IP WIFI Camera Module features an H.264 2MP image sensor (1/2.7″ CMOS) with a resolution of 1920×1080, delivering crisp and clear video output. It supports multiple resolutions (1080P/720P/480P) at 20-25 FPS, adjustable bit rates (32KB–20Mbps), and wide dynamic range (WDR >100dB) for balanced exposure in challenging lighting. Equipped with low-light capability (0.01Lux@F1.2), it ensures reliable performance in dark environments. The module integrates 802.11b/g/n WiFi for wireless connectivity and supports remote access, TF card storage (up to 64GB), and dual OS compatibility (Android/Windows, iOS customizable). Its compact design includes customizable FPC interfaces, a wide FOV (60°–200° optional), and robust operation in extreme temperatures (-20℃ to +60℃) with low power consumption (<5W).
can do Multi-Camera Synchronization System( at least 4 cameras). We also can do USB UVC Multi-Camera Synchronization System( at least 4 cameras)

Specification:
| Camera Type | H.264 200MP IP Camera | |||||
| CMOS Sensor | 1/2.7 COMS | |||||
| Resolution | 1920*1080 | |||||
| Min. Illumination | RGB 0.01Lux@F1.2 | |||||
| Interface | FPC interface 24pin-0.5mm CIS/mipi(FPC Length can customize) | |||||
| FOVD | FOVD 60°-200°(OPTION) | |||||
| Wide dynamic range | >100db WDR | |||||
| Vidoe Resolution | 1920*1080P/1280*720P/640*480P | |||||
| Frame rate | 20-25FPS | |||||
| Bitrate | 32KB-20Mbps | |||||
| WIFI | Support 802.11GBN | |||||
| Remote | Support | |||||
| Audio | can customize | |||||
| Audio Coding | G.711A/G.711U | |||||
| Reset | Support | |||||
| SD/TF | MAX Support 64GB | |||||
| APP | Android /Windows(IOS APP needs customization) | |||||
| Power supply | DC-5V/4.2V Battery 2PIN-1.25 | |||||
| Power | <5W | |||||
| Work Environment | (-20℃~+60℃,<90% RH) | |||||
Applications:
Ideal for smart home security, IoT devices, industrial monitoring, baby monitors, drones, and portable electronics. Suitable for environments requiring discreet, high-definition surveillance, such as outdoor installations, warehouses, or automotive systems.
