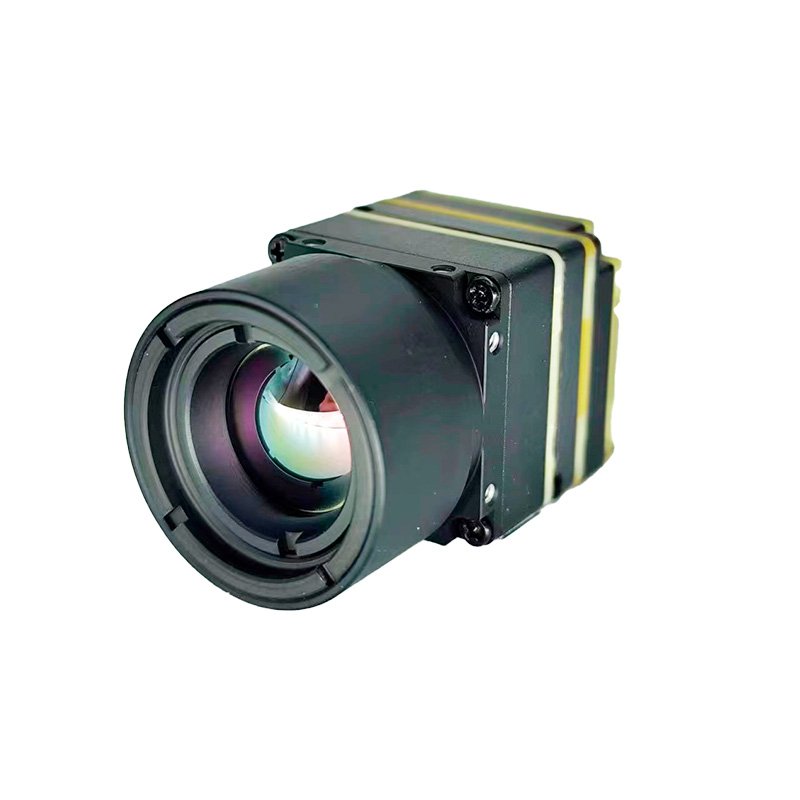

640X512 CVBS USB Thermal Imaging Camera Core For Drone. We also have 640×512 Thermal Imaging Camera Monocular Hunting Scouting
| Resolution | 640×512 |
|---|---|
| Out put | USB, CVBS |
| Lens | 4MM, 5.3MM, 7MM, 9.1MM, 13MM, 15MM, 19MM, 25MM, 35MM, 50MM |
This is high resolution 640*512 thermal Imaging camera core,Infrared, night vision, support usb output or cvbs output with lens for 4MM, 5.3MM, 7MM, 9.1MM, 13MM, 15MM, 19MM, 25MM, 35MM, 50MM, long range. Mainly use for Drone and Monocular for hunting.
Specification:
| Resolution | 640*512 | |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector | |
| Frame rate | 50FPS | |
| Pixel spacing | 12μm | |
| NETD | 40mk | |
| Corresponding band | 8～14μm | |
| Color type (4 types available, Can be set before delivery) | White heat, black heat, iron red, fusion | |
| Voltage | 5V-16V | |
| Power | ≤0.8W | |
| Output | CVBS | |
| Analog output format | PAL | |
| Size( not including lens) | 20*20mm | |
| Weight ( not including lens) | ≤23G | |
| Operating temperature | -40℃～+80℃ | |
| Storage temperature | -45℃～+85℃ | |
| High temperature resistance | +300℃ | |
| Pinout | (1)POWER | |
| (2) GND | ||
| (3) CVBS | ||
| (4) UART TXD | ||
| (5) UART RXD | ||
