50MP USB3.0 UVC camera module 8K resolution 1080P@60fps, 38*38mm compact size, wide temp -20~80℃, driver-free for text recognition, industrial scanning and visual detection.
This is a brand-new USB3.0 Camera Module. High-performance 50MP UVC USB 3.0 camera module. Built with 1/1.56-inch color CMOS sensor, it delivers ultra-high maximum resolution up to 8160×6120 (8K) and excels at industrial text recognition, high-precision scanning, visual inspection and machine vision development.

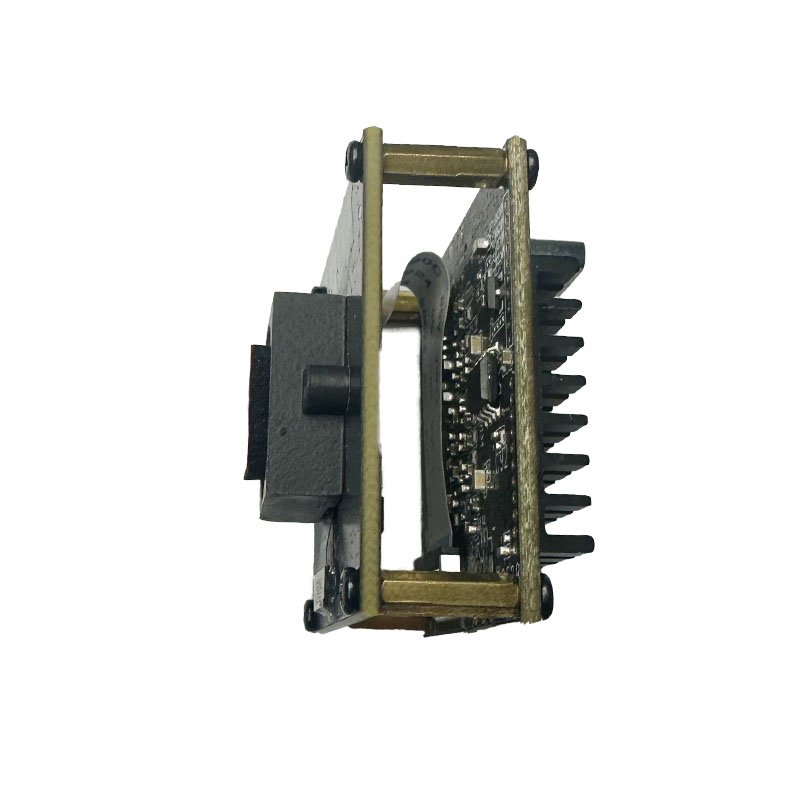

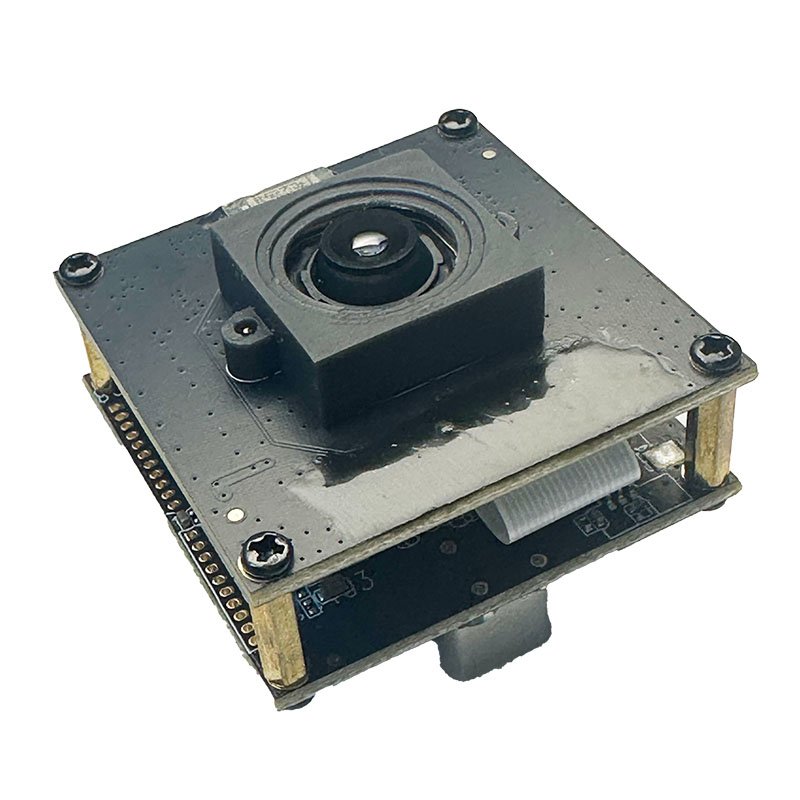

This compact module adopts a 38mm × 38mm × 27mm integrated PCB structure equipped with an aluminum heat sink for stable heat dissipation, supporting PDAF auto-focus to capture clear details within an object distance range of 10cm to infinity.
Supporting both MJPG and YUY2 output formats via USB 3.0 interface, the camera module achieves flexible frame rate performance: 8K@5fps, 4K@30fps, full HD 1080P@60fps under MJPG compression. It complies with UVC standard, requiring no extra driver installation, and is fully compatible with Windows 10/11, Linux 2.6+, macOS and iPad OS 17+. Powered by 5V USB bus with working current below 600mA, it works stably in a wide temperature range from -20°C to 80°C and has passed RoHS certification.
Without built-in pickup microphone, this industrial-grade camera module is widely applied in high-precision text recognition, document scanning, industrial defect detection, AI visual algorithm verification, microscopic imaging and automated visual inspection equipment.
Specification:
| Module Size | 38mm ×38mm x27mm |
| Temperature (Operation) | -20°C -80°C |
| Pickup function | NO |
| Object distance | 10CM-∞ |
| Focus mode | PDAF Auto-focus |
| interface | USB 3.0 |
| Power | USB bus power 5V |
| Working current | ＜600mA （3W） |
| Operating system request | Windows 10/11/Linux2.6.2以上/MacOS（include UVC）/Ipad OS 17 above |
| Drivers standard | UVC driver free international standard |
| Certifications | ROSH |
| Electronic shutter mode | Electronic rolling shutter (ERS) |
| Sensor Type | 1/1.56 |
| Active Array Size | 8160*6120 |
| Sensitivity | TDB |
| Pixel Size | 1µm x1µm |
| Maximum Image Transfer Rate | 5FPS 50M MJPG/WIN10 |
| S/N Ratio | TDB |
| Dynamic Range | TDB |
| TTL | 4.9mm |
| FOV（D） | D:84.3° H：68° V：56° |
| Optical Distortion | ＜1.5% |
| IR Filter | 650±10nm |
