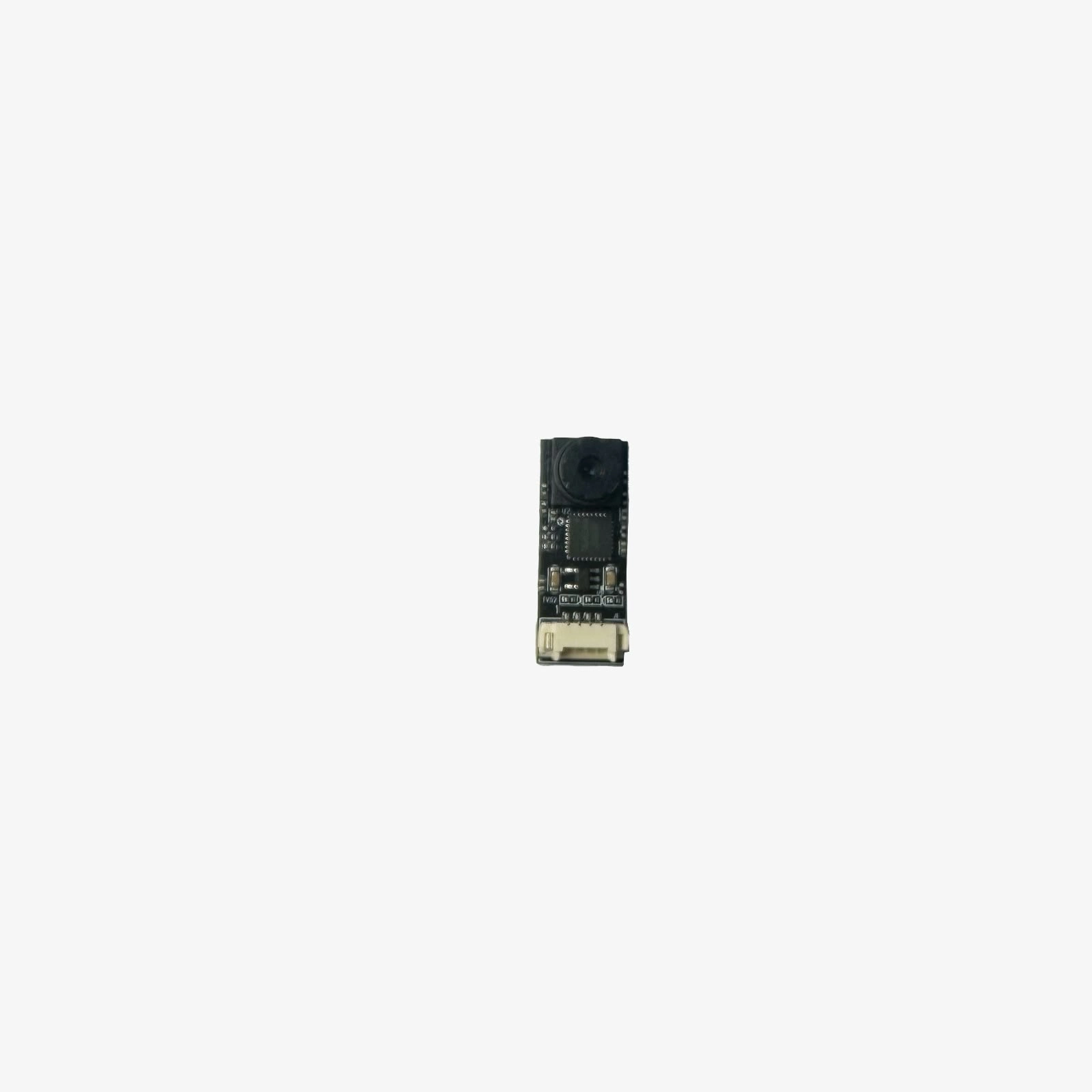

Espressif ESP32 Cam 720P USB camera module for vision development, direct replacement of DVP OV2640, OV3660, OV5640 camera modules, easy integration for embedded AI vision projects.
This is a dedicated USB camera module for the ESP32-S3; it features a 1MP resolution but is also capable of 4MP. It serves as a drop-in replacement for OV2640/OV3360 camera modules. Compact in size and requiring minimal I/O pins on the development board,stable performance, Type-C interface. it is available with an optional microphone and continuous supply availability.
Specification:
| Module Size | 26mm*11mm |
| Temperature (Operation) | -10°C to 60°C |
| Assembly technique | SMT (ROSH) |
| Object distance | 5CM-20CM |
| PCB printing ink | black |
| interface | USB2.0 |
| Power | USB bus power 5V |
| Operating system request | Win XP、Win 7 or Linux2.6.20 above version |
| Package | Anti-electrostatic tray |
| MIC | Single analog microphone |
| horn | Single horn |
| Sensor Type | 1/4″ |
| Active Array Size | 1288*728 |
| Sensitivity | TDB |
| Pixel Size | 2.7µm x2.7µm |
| Maximum Image Transfer Rate | 40fps 720p |
| S/N Ratio | TBD |
| Dynamic Range | TBD |
| Package | 4.2*2.9mm BGA |
| TTL | 10.7mm |
| F/No | 2.2 |
| EFL | 1.5mm |
| FOV | 104° |
| TV Distortion | <1% |
| Optical Distortion | <12 |
| IR Filter | 650±10nm |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUV/MJPGE (1280*720/40fps, 640*480/60fps, 320*240/120fps) |
| Fixed Pattern Noise | < 0.03% of VPEAK-T |
